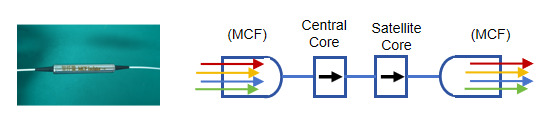

MCF Isolator
Our component's specifications are customizable. Please contact us for further discussion.
Technical Specifications
| Items | Unit | Typical Values | |
|---|---|---|---|
| Core Number | - | 4 | |
| Operating wavelength, λ | nm | 1550 | |
| Insertion Loss | dB | ≤ 0.4 | |
| Isolation | dB | ≥ 50 | |
| Polarization-Dependent Loss | dB | ＜ 0.1 | |
| Crosstalk | dB | ＜-50 | |
| Reurn Loss | dB | ＜-50 | |
| Package Size | mm | Φ5 × 35 |
Ordering Information
| 製品コード |
|---|
| MCF Isolator |
