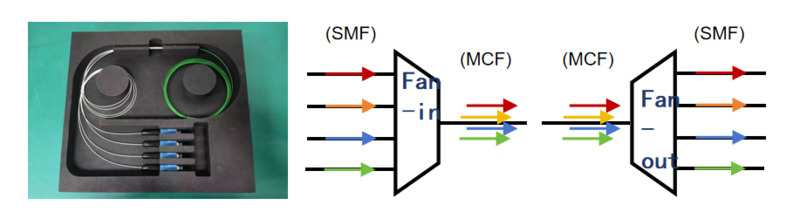

Weakly-coupled MCF Fan-in / Fan-out
Ultra-low-loss Multicore Fiber Device
Technical Specifications
| Items | Unit | Typical Values | |
|---|---|---|---|
| Core Number | - | 2、4、7 | |
| Operating Wavelengh | nm | 980、1550 | |
| Insertion Loss | dB | ≤ 0.20 | |
| Crosstalk | dB | ＜ -70 | |
| Package Size | mm | Φ4 × 110 |
Ordering Information
| 製品コード |
|---|
| Weakly-coupled MCF Fan-in / Fan-out |
